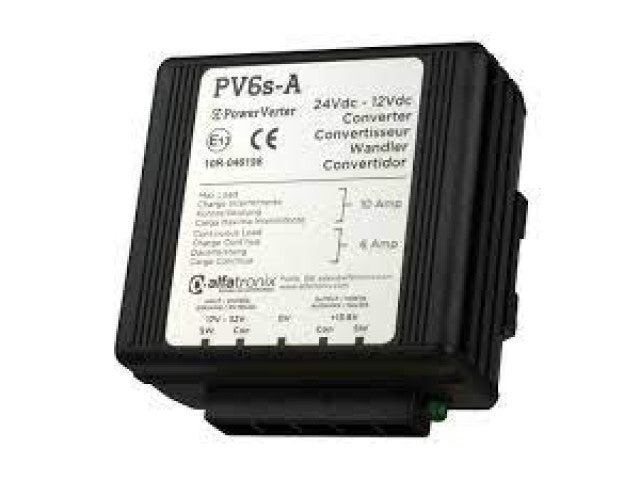

Omvormer PV6s-A 24V -> 12V Continue 6A / Periodiek 10A Dual Output non-isolated
€99,95
Prijs met korting
€99,95
Normale prijs
Ga direct naar de productinformatie
Omvormer PV6s-A 24V -> 12V Continue 6A / Periodiek 10A Dual Output non-isolated
€99,95
Prijs met korting
€99,95
Normale prijs
Incl. BTW.
Excl. Verzendkosten.
SKU: PV6s-A
- Informatie:
- Input voltage range 17-32Vdc
- Output voltage 13.6Vdc +15% -20% at extremes of temperature, load, input tolerance, etc.
- Output Power As stated, from either output or combination of both. intermittent ratings as stated, taken for a maximum of 2 minutes followed by 8 minutes rest.
- Transient voltage protection Meets ISO7637-2 International standard for 24Vdc commercial vehicles
- Electrostatic voltage protection Meets ISO10605, ISO14892, >8kV contact, 15kV discharge
- Output noise <50mV pk-pk at continuous load. Meets CISPR25 and VDE0879-3
- Off load current (quiescent current) <15mA
- Power conversion efficiency Typically: 90%
- Operating temperature -25ºC to +30ºC to meet this specification table
- +30ºC to +80ºC de rate linearly to 0A
- Storage temperature -25ºC to +100ºC
- Operating humidity 95% max., non-condensing
- Casework Anodised aluminium, glass filled polycarbonate, dust water and impact resistance to IP533
- Connections Five 6.3mm push-on flat blade connectors
- 6-way 070 connector (PV12s-A)
- Output indicator Green LED adjacent to output terminals. None on PV12s-A
- Mounting method ‘Click ‘n’ fit mounting clip, fitted separately using three hole fixture
- Safe area protection:
- Over current
- Limited by current sensing circuit
- Over heat Limited by temperature sensing circuit
- Transients Protected by filters and rugged component selection
- Catastrophic protection Protected by internal input and output fuses
- Approvals 2014/30/EC The general EMC directive
- Regulation 10 The automotive directive
- 93/68/EEC The CE marking directive
- Markings CE and E (automotive) marked
- Geschikt voor:
- 24V>12V
