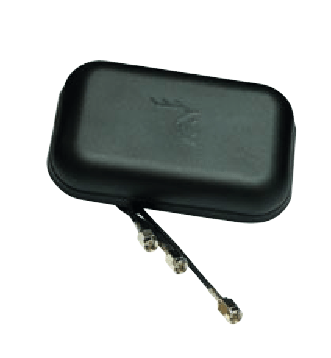

Combi antenne GPS 2400 LP/CELL/SMB/MCX/SMA/0.2

• Combi antenne GPS 2400 LP/CELL/SMB/MCX/SMA/0.2
• GPS SMB F
• CELL MCXm
• WLAN SMA m
• Technical Data
• Dimensions
• 124 mm x 80 mm x 21 mm
• Weight
• 268 g
• Housing meterials
• ASA-PC
• Temperature range
• -40°C – +80°C
• Tightening torque
• max.
• 5 Nm
• Protection class
• IP66 (acc. ISO 60529)
• Cable type
• RG 174
• Cellular
• Frequency range
• Low:
• 824 - 960 MHz
• High:
• 1710 - 2170 MHz
• Services
• 2G:
• GSM 850/900 MHz
• GSM 1800/1900 MHz
• 3G:
• UMTS
• Decoupling
• >
• 40 dB
• Gain
• 0 dBi
• 2)
• Diagnostic Resistor
• 10 kOhm
• Load capacity
• max.
• 10 W pulsed acc. GSM standard
• GNSS
• Frequency range
• GPS:
• 1.57542 GHz ± 1.023 MHz (L1-band)
• QZSS:
• 1563 – 1587 MHz (L1)
• Galileo:
• 1559 – 1591 MHz (E1)
• Impedance
• 50 Ohm
• Current consumption
• 13 mA@ 5 V ± 0.5 V (typ. 10 mA)
• Gain
• min.
• 2 dBic
• 1)
• Amplification
• typ.
• 26 ± 2 dB
• Noise figure (50 Ohm)
• typ.
• ≤
• 1.4 dB typ.
• Voltage supply
• 2.7 V - 5.5 VDC (remotely fed)
• WLAN/BT
• Frequency range
• Bluetooth:
• 2400 - 2484 MHz
• IEEE Std. 802.11b,g,n:
• 2412 - 2484 MHz
• Impedance
• 50 Ohm
• Load capacity
• max.
• 200 mW acc. IEEE Std. 802.11 b,g,n
• Gain
• 0 dBi
• 2)
• Diagnostic resistor
• 10 kOhms
• Return loss
• >
• 12 dB
• 1)
• dBic: referenced to an isotropic radiator, circular polarization
• 2)
• dBi:
• referenced to an isotropic radiator
