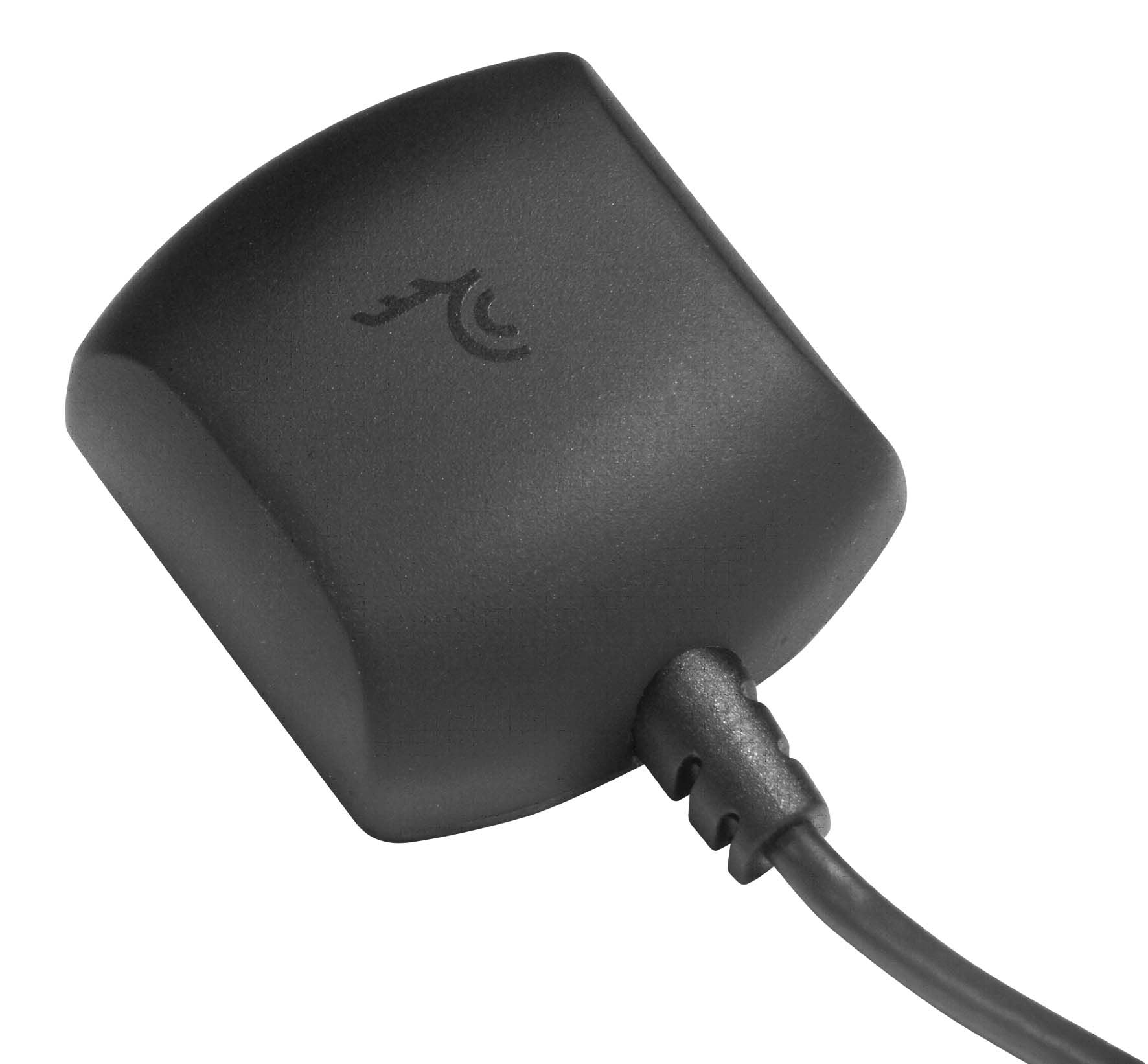

Antenne GPS magneet GLONASS 9 M SMA M - 3 mtr

• GPS magneet antenne tb Glonass / GPS sma/m connector
• Technische Daten / Technical data
• Abmessungen / Dimensions 38 x 34 x 15,5 mm
• Gewicht / Poids 70 g
• Betriebstemperatur / Operational temperature -40° C – + 80° C
• Lagertemperatur / Storage temperature range -40° C – + 85° C
• Schutzklasse / Protection class IP66 (acc. IEC 60529)
• Frequenzbereich / Frequency range GLONASS: 1602,0 - 1614,94 MHz
• GPS: 1,57542 GHz ± 1,023 MHz (L1-band)
• Impedanz / Impedance 50 Ohm
• VSWR ≤ 1,5 : 1
• Polarisation / Polarization RHCP
• Gewinn / Gain typ. 2 dBic* at 90° Elevation
• Verstärkung / Amplification typ. 27 dB ± 1 dB
• Rauschmaß / Noise figure typ. 1.4 dB
• Betriebsspannung / Voltage supply 2,7 V - 5,5 VDC remote fed by GLONASS/GPS
• receiver through signal cable
• Stromaufnahme / Current consumption ≤ 13 mA @ 5 V ± 0.5 V
• Kabeltyp / Cable type RG 174
• Kabellänge / Cable length -001: 3000 +50 mm (other length on request)
• Anschluss / Connector -001: SMA male (other connector types on request)
