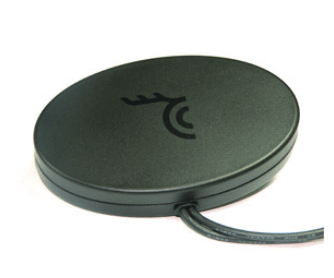

Combi antenne CGN 1890 LP/LC/P/SMA/5.0

• Combi antenne CGN 1890 LP/LC/P/SMA/3.0
• Features
• •
• Reception antenna for satellite signals for processing in navigation
• systems, fleet management systems,
• traffic guidance systems and vehicle location in combination with
• low profile cellular phone antenna
• •
• Low body height ca. 20 mm
• •
• Coverage of European and American cellular phone frequencies
• •
• Mounting on several surfaces (e.g. glass, plastics, metal ...)
• Technical Data
• Dimensions (without rod)
• 102 mm x 66 mm x 20 mm
• Weight
• 139 g
• Temperature range
• -40°C – +85°C
• Protection class
• IP66 (acc. IEC 60529)
• Cable type
• RG 174
• Cellular
• Frequency range
• Low:
• 824 - 960 MHz
• High:
• 1710 - 2170 MHz
• Services
• 2G:
• GSM 850/900 MHz
• GSM 1800/1900 MHz
• 3G:
• UMTS
• Impedance
• 50 Ohm
• VSWR
• ≤
• 2.0
• Gain
• 0 dBi
• 1)
• Load capacity
• max.
• 10 W pulsed acc. GSM standard
• Diagnostic Resistor
• 10 kOhm
• GNSS
• Frequency range
• GPS:
• 1.57542 GHz ± 1.023 MHz (L1-band)
• QZSS:
• 1563 – 1587 MHz (L1)
• Galileo:
• 1559 – 1591 MHz (E1)
• GLONASS:
• 1602.0 - 1614.94 MHz
• Impedance
• 50 Ohm
• VSWR
• ≤
• 2.0
• Gain
• 1 dBic
• 2)
• Amplification
• 27 ±1 dB
• Noise figure (50 Ohm)
• ≤
• 1.4 dB
• Voltage supply
• 2.7 – 5.5 VDC (remotely fed)
• Current consumption
• typ.
• 13 mA @ 5 VDC
• 1)
• dBi:
• referenced to an isotropic radiator
• 2)
• dBic:
• referenced to an isotropic radiator, circular polarization
• Cell SMA m
• GNSS Sma m
