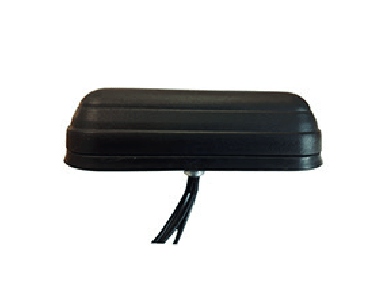

Combi antenne CGNW 702659 LP S/FAKRAf/3.0

• Combi antenne CGNW 702659 LP S/ 3 x FAKRA Female /3.0
• GPS / GSM / UMTS / LTE / WLAN / BT
• CELL Frakra F Code D
• GNSS Frakra F Code C
• WLAN Frakra F Code E
• •
• Combination antenna for positioning, data-services and short
• range radio services
• •
• Terrestrial based transmission and satellite-based positioning
• •
• Embedded high performance LNA with dual feed ceramic patch
• antenna and phase shift network for optimized cross polarization
• discrimination(XPD)
• •
• Screw mounting on metallic and nonmetallic ground
• •
• Designed for installation in harsh environment
• Technical Data
• Cellular
• Frequency range
• Low:
• 698 - 960 MHz
• High:
• 1710 - 2690 MHz
• Services
• 2G:
• GSM 850/900 MHz
• GSM 1800/1900 MHz
• 3G:
• UMTS
• 4G:
• LTE-bands (1 – 10; 12 – 20; 23, 25; 26 – 30; 33 – 41; 44)
• Impedance
• 50 Ohm
• Load capacity
• max.
• 10 W pulsed acc. GSM standard
• VSWR
• ≤
• 2.0
• Gain
• 0 dBi
• 1)
• Diagnostic resistor
• 10 kOhms
• GNSS
• Frequency range
• GPS:
• 1563 – 1587 MHz (L1)
• QZSS:
• 1563 – 1587 MHz (L1)
• Galileo:
• 1559 – 1591 MHz (E1)
• BeiDou:
• 1559 – 1591 MHz (B1C)
• GLONASS:
• 1593 – 1610 MHz (G1)
• Impedance
• 50 Ohm
• VSWR
• ≤
• 2.0
• Gain
• 1 dBic
• 2)
• Amplification
• 27 ±1 dB
• Noise figure (50 Ohm)
• ≤
• 2.2 dB
• Voltage supply
• 3.0 – 5.5 VDC (remotely fed)
• Current consumption
• 24 mA ± 1 mA at 5 V
• WLAN/BT
• Frequency range
• IEEE 802.11 b, g:
• 2400 - 2484 MHz
• IEEE 802.11 a,h:
• 5150 - 5725 MHz
• IEEE 802.11 n:
• 2400 - 2484 MHz
• and 5150 - 5725 MHz
• IEEE 802.11 p:
• 5755 - 5925 MHz
• Bluetooth (BT):
• 2400 - 2483,5 MHz
• Polarization
• linear
• Technical Data
• Load capacity
• IEEE 802.11 b, g:
• ≤
• 200 mW
• IEEE 802.11 a,h:
• ≤
• 1000 mW
• IEEE 802.11 n:
• ≤
• 200 mW (2.4-2.84 GHz)
• ≤
• 1000 mW (5.1-5.72 GHz)
• IEEE 802.11 p:
• ≤
• 8 W EIRP (5.79 - 5.81 GHz)
• ≤
• 2 W EIRP (5.85 - 5.92 GHz
• Bluetooth (BT):
• <
• 100 mW
• Diagnostic resistor
• 10 kOhms
• 1)
• dBi:
• referenced to an isotropic radiator
• 2)
• dBic:
• referenced to an isotropic radiator, circular polarization
