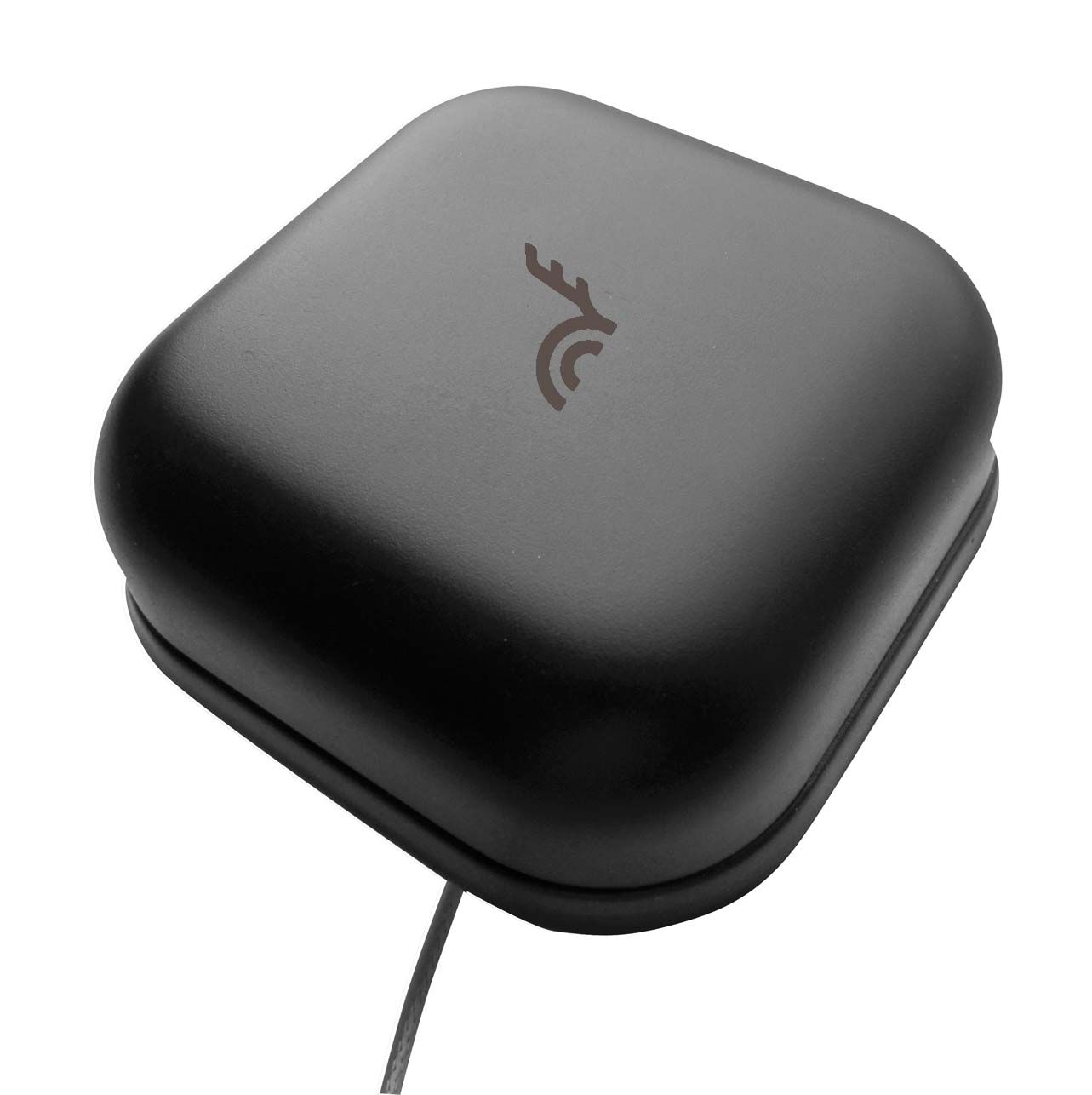

Antenne CEL 7026 LP S SMA M 1 mtr

• ,CEL 7026 LP S Pt no. 920 635-001
• CELLULAR(2G/3G/4G) Antenna
• • Passive transmitting and reception antenna
• • Low Profile (body height app. 31 mm)
• • Coverage of all European and American mobile cellular communication net
• • Mounting on several surfaces (e.g. plastics, metal …)
• Subject to alterations
• Technical data Dimensions app. 80 mm x 80 mm x 31 mm Housing material ASA+PC Temperature range Operations: -45 – +85°C Storage: -45 - +85°C Protection class IP6k9k (acc. ISO 20653) CELLULAR Frequency range LTE-LB: 698 - 862 MHz GSM 850: 824 – 894 MHz GSM 900: 880 – 960 MHz GSM 1800: 1710 – 1880 MHz GSM 1900: 1850 – 1990 MHz UMTS: 1920 – 2170 MHz LTE-HB: 2305 - 2690 MHz Impedance 50 Ohm VSWR typ. ≤ 2,0 Gain typ. 0 dBi 1) Polarization linear, vertical Load capacity min. 8 W pulsed acc. GSM standard Cable type RG 174 low loss Cable length 1000 +10 mm 2) Connector SMA M)
