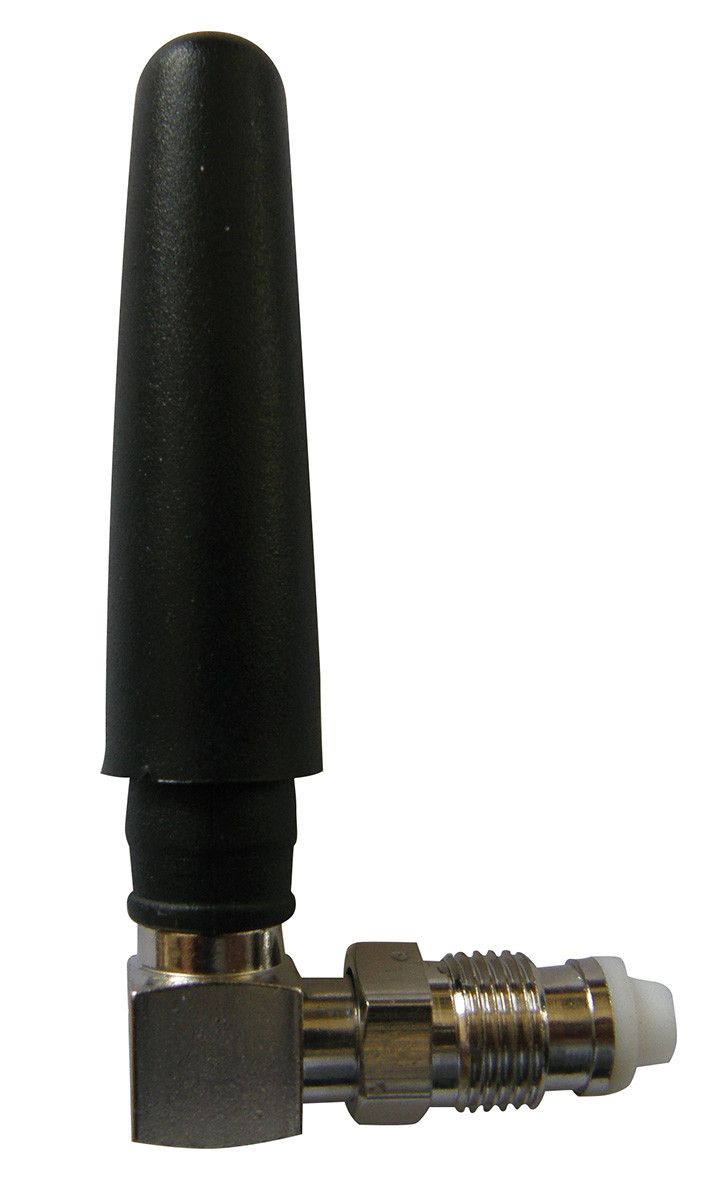

Antenne MCA inbouw CEL 85 21 ST 90° FME F

• Stubby 90° Antenna Ord.code 951 012 xxx CELLULAR 2G & 3G
• • Conectors SMA male or FME female • Direct mounting on device • For CELLULAR networks ( GSM 850, GSM 900, 1800, 1900, UMTS) • M2M application - telemetering, remote,, maintenance, …
• Technical data Electrical Specification Frequency range AMPS/GSM 850: GSM 900 : GSM 1800: GSM 1900: UMTS:
• 824 – 894 MHz 880 – 960 MHz 1710 – 1880 MHz 1850 – 1990 MHZ 1920 – 2170 MHz
• Impedance 50 Ohm VSWR / Return loss Gain (linear gain, vetical polarization) 2 dBi
• Mechanical Dimensions Diam 10,5 - 50 x 17 mm Housing Materials ABS Weight 7g Operations temperature range - 40 + 85° C Storage temperature range - 40 + 85 °C Housing protection class IP50
• Versions
• CEL 85 21 ST 90° SMAm 951012001 SMA male angled 90° CEL 85 21 ST 90° FMEf 951012002 FME female angled 90°
