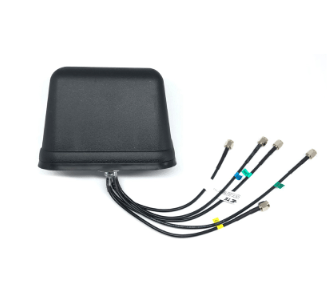

Combi antenne C2GN 70 38 S MIMO 5mtr 3x Fakra F

• 951-018-113
• C2GN 7038 S MIMO 5.0
• ~
• 5000 mm
• Fakra
• female,
• Code D
• Fakra
• female,
• Code Z
• Fakra
• female,
• Code C
• WLAN-MIMO (2.4GHz/5.8GHz) Screw Antenna
• Cellular-MIMO (2G/3G/4G/5G)/ GNSS (GPS/GLONASS/QZSS/BEIDOU/GALILEO)/ WLAN-MIMO (2.4GHz/5.8GHz)
• Screw Antenna
• 5G S MIMO/Series | Part Number 951-018-XXX
• Technical Data
• Cellular
• Frequency range
• *
• LTE-LB 700:
• 698 - 862 MHz
• VSWR 2.8
• AMPS/ GSM 850:
• 824 - 894 MHz
• GSM 900:
• 880 - 960 MHz
• GSM 1800:
• 1710 - 1880 MHz
• VSWR 2.0
• GSM 1900:
• 1850 - 1990 MHz
• UMTS 2100:
• 1920 - 2170 MHz
• LTE-HB 2600:
• 2305 - 2690 MHz
• VSWR 1.9
• 5G 3500:
• 3300 – 3800 MHz
• VSWR 1.7
• 5G 4000:
• 3800 – 4200 MHz
• VSWR 1.7
• 5G 5000:
• 4400 – 5000 MHz
• VSWR 2.8
• Gain
• Avg. 2.0 dBi *
• Max. 5.5 dBi
• 1)
• Polarization
• linear, vertical
• Decopling Cell 1 vs 2
• LB: 8 dB
• HB: > 18 dB
• Impedance
• 50 Ohm
• Load capacity
• Max.
• 10 W pulsed
• Diagnostic resistor
• 10 KOhm
• GNSS
• Frequency range
• *
• GPS L1/QZSS:
• 1563 - 1587 MHz
• BeiDou (B1C):
• 1559 - 1591 MHz
• Galileo E1:
• 1559 - 1591 MHz
• GLONASS G1:
• 1593 - 1610 MHz
• VSWR
• ≤
• 1.5
• Gain
• 2 dBic
• 2)
• Polarization
• Right hand circular
• Impedance
• 50 Ohm
• Voltage supply
• 2.9 – 5.5 VDC
• Current consumption
• typ.
• 13
• ±
• 2 mA
• Rejection (LNA)
• >
• 30 dB
• Amplification (LNA)
• 27 ± 2 dB
• Noise figure (LNA)
• ≤
• 3.0 dB
• WLAN or Bluetooth
• Frequency range
• *
• Bluetooth:
• 2400 - 2484 MHz
• IEEE 802.11 b, g, n, ax:
• 2412– 2484 MHz
• ≤
• 200 mW
• IEEE 802.11 a, h, n, ac, ax:
• 5150– 5875 MHz
• ≤
• 1000 mW
• IEEE 802.11 p:
• 5755– 5925 MHz
• ≤
• 8 W EIRP <5.81 GHz
• ≤
• 2 W EIRP >5.85 GHz
