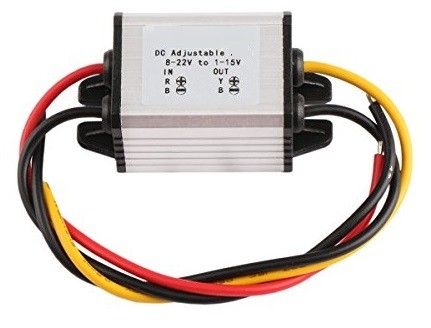

Power regulator DC 8-22V / 1-15V / 3A - Output voltage 1-15V

• Car power Voltage Regulator. Output voltage can be changed from 1-15V.
• Feature:
• Dimensions: 34 x 25 x 20mm
• Input voltage: DC 8-22V
• Output voltage:1-15V (adjustable,please ensure that the input voltage is higher than the output 3V)
• Output current: 3A Max.(2A,long-term work does not need to enhance heat dissipation)
• Conversion efficiency: up to 96%
• Static power consumption: about 12mA
• Ripple output: About 100mV   (when 12V to 5V/3A)
• Operating temperature:  -20 °c to +60 °c ( Industrial grade ), -40 °c to 80 °c (limit)
• Short circuit protection
• Reverse polarity protection
• Over-current protection
• Over-temperature protection
• Shockproof, moistureproof, dust-proof
• wiring:
• Red: input +
• Yellow: output +
• Black: input- / output -
• Package includes:
• 1 x DC Converter Module
