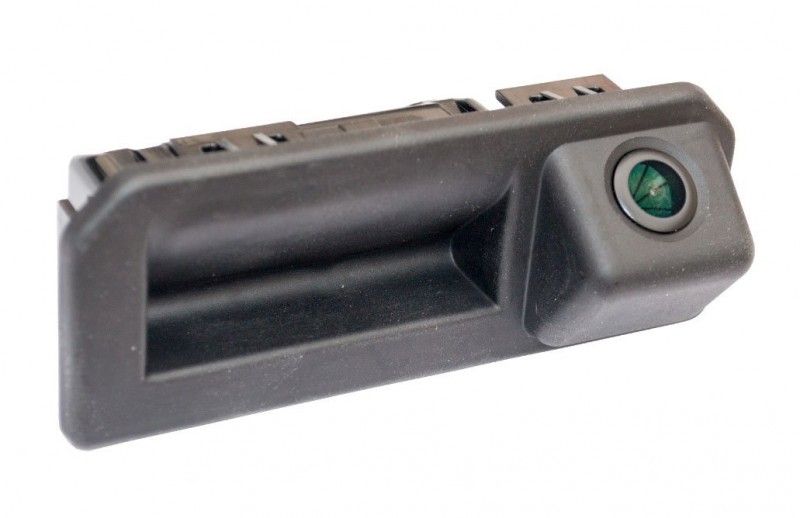

Sony CCD camera Audi Q2/A5 2017 & Skoda NTSC; no park lines

• This reversing camera is specially dedicated for Audi vehicles. The inconspicuous, robust camera with Sony CCD lens simply replaces the trunk release handle. Just easy remove the existing trunk release handle and replace it with the reversing camera. The camera is complete including plug and play cable kit which allows easy plug and play installation. The camera is waterproof according to the IP67 certification level.
• Features:
• - 1/3” SONY CCD lens
• - 600 TV lines
• - Lens angle 170 degrees
• - Waterproof according to IP67 certification level
• - Black Light Compensation
• - Display in mirror image
• - Automatic color correction
• The following is provided in the set:
• - Audi reversing camera NTSC
• - Video extension cable 5 meter (RCA)
• - Installation manual
• - Invoice
• - Warranty
• Additional information:
• - With a multimedia interface or video interface it is possible to connect the camera with the original navigation system, ask for the possibilities.
• - Concerns a high-end SONY CCD lens, so no cheap CMOS lens
• Technical features:
• - IP rating: IP68 (Water proof)
• - Image Sensors : Colour 1/3"SONY CCD
• - TV System: NTSC
• - Effective Pixels: NTSC 752x582
• - Sensing Area: 4.9 × 3.7 mm
• - Horizontal Resolution: 600TV Line
• - Horizontal Sync. Frequency: 15.625 / 15.734 kHz
• - Vertical Sync. Frequency : 50/60 Hz
• - Video output: 1Vp-p,75Ohm
• - Gamma Consumption: 0.45
• - Auto Gain Control: Automatic
• - Back Light Compensation: Automatic
• - S/N Ratio: Better than 48dB
• - Lens Angle: 170 ° (Degrees)
• - Current Consumption: 150mA
• - Power Supply: DC +12V (10%)
• - Operating Temperature: -20 C to +70 C
• - Storage Temperature : -40 C to +80 C
• - Connection: RCA
• - Image: Mirror
