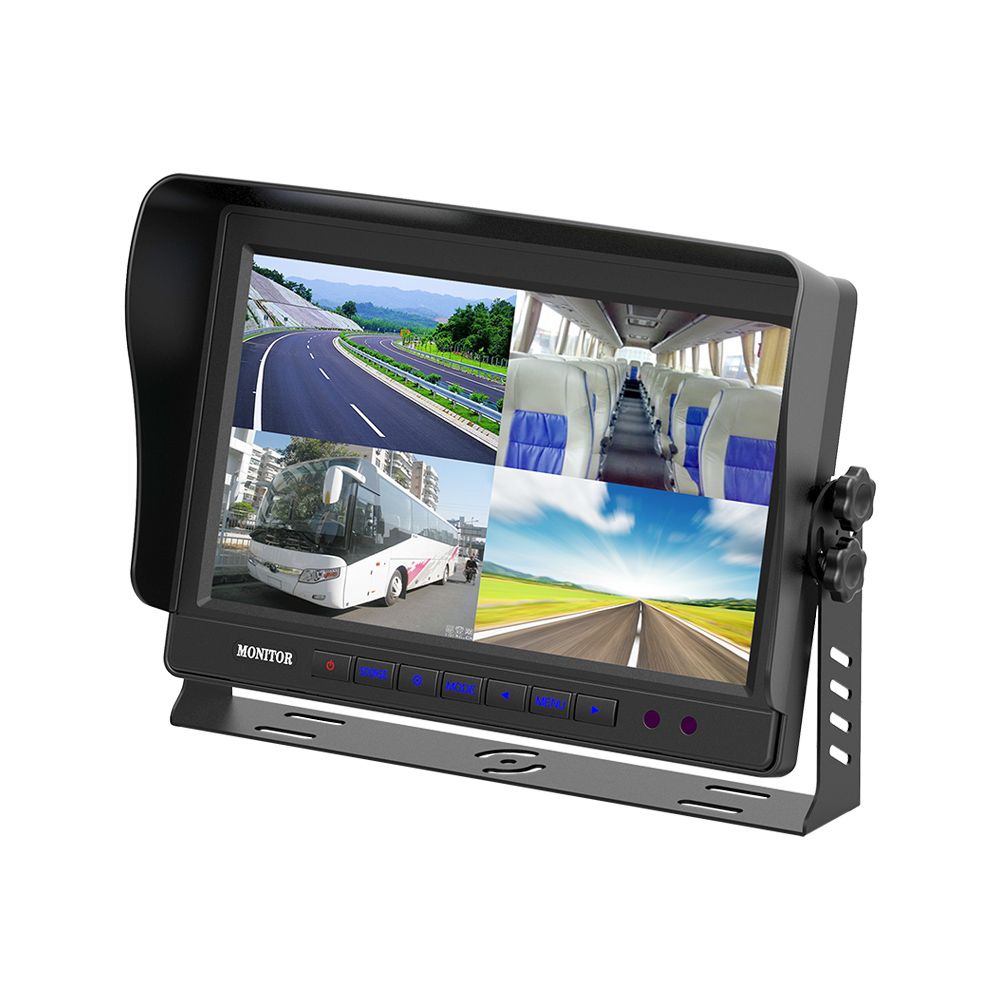

m-use opbouw monitor 10.1 split screen 4x AV 12V-32v

• 10.1" monitor built-in quad screen
• - NEW TFT panel @ 16:9 image
• - PAL/NTSC auto recognized
• - Resolution: 1024 x RGB x 600
• - Brightness: 400 cd/m2
• - View angle: L/R: 70 degree; UP: 50 degree;
• Down: 70 degree
• - 4 video inputs with triggering
• - 4 x M12 4pin connector
• - Single /Split /Quad view selectable
• - 8 languages OSD, remote control
• - Trigger priority:
• CAM 2>CAM 1>CAM 3>CAM 4
• - High-low voltage protection & short circuit
• protection
• - Built-in speaker (optional)
• - Power voltage: DC 9~32 V
• - Detachable sunshade
• - Metal U type bracket
• - Dimension:
• 25.5 x 16.7 x 3.0cm (without sunshade)
• 27.5 x 18.4 x 7.8cm (with sunshade)
