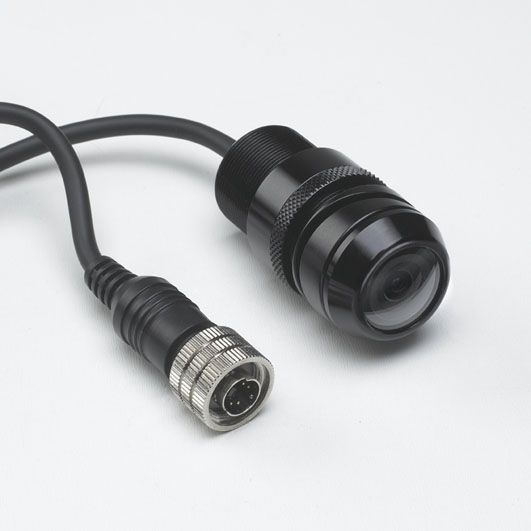

MXN 12CW rear view camera 160°

• Kleuren camera, geleverd met 2 sets schuine ringen voor montage in niet-rechte oppervlakken
• 1/3" Color CCD high quality image sensor Electronic iris Normal / mirror image Waterproof housing (IP-68) Diagonal 160° viewing
• Compact aluminum housing Easy mounting Temp. -20 ~ 65°C
• • 1/3” Color CCD high quality image sensor
• • 470.000 pixels (PAL)
• • Waterproof Housing (IP69K rating)
• • Auto iris • Normal Image (fixed setting)
• • Diagonal 160˚ Viewing
• • Compact Aluminum Housing
• • Easy installation (flushmount)
• • Temp. - 40˚C ~ + 80˚C
• • Extra thick glass window (3mm)
• • Suitable for Φ 25mm drilling hole
• • Various angled washers included
• • “CE marked” and “EMC approved” 1/3” Color CCD with electronic auto iris Image Sensor PAL 470.000 pixels Scanning System 0.1 lux Minimum Illumination - 40˚C ~ + 80˚C Operating Temperature 123˚(H) x 90˚(V) x 160˚(D) Viewing Angle DC 12V, 100mA (Max) Power Consumption Compact Aluminum Housing Material DC 10V ~ 24V Power range Accessories
• Dimensions Approx. 180g Wight Head part : Φ 40.2 mm Main body : Φ 25.0 mm Total length : 56.44 mm Flushmount depth: approx. 46.50 mm 1 set 15˚ washer, 1 set 6˚ washer, 1 set straight spacer
