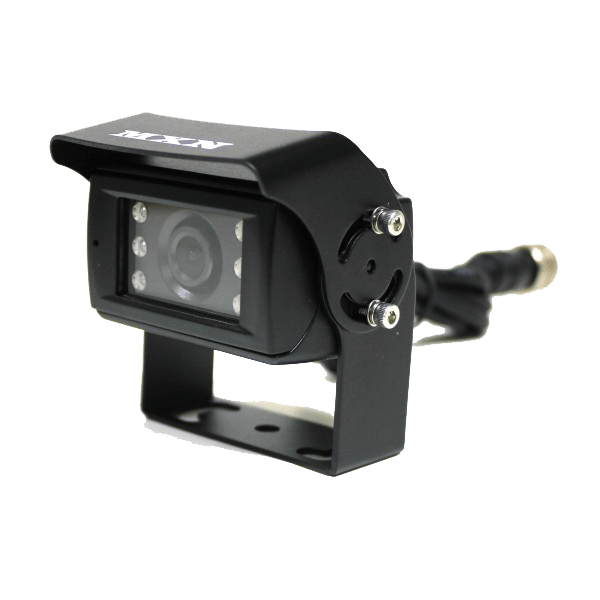

MXN 35C Camera PAL normaal/mirror IR led 130°

• - Best picture quality (in combination with Digital LCD monitor)
• - High resolution CCD camera (470,000 pixels)
• - 1/3” Color CCD high resolution image sensor
• - IP68 Waterproof Rating
• - Diagonal 130˚ Viewing
• - Adjustable Mirror/Normal Image
• - Ultra low light performance
• - Automatic Electronic Iris
• - Built-in Microphone
• - Built-in IR LED’s
• - Temp. -30˚C ~ 80˚C
• - Vibration resistant
• - Aluminum die-cast housing
• - Anti-corrosive, chromate coating
• - Waterproof screw type connector (IP67), 4-pin mini-DIN
• Image Sensor 1/3” Color SONY SUPER HAD II CCD
• Scanning System PAL 470,000 pixels
• Resolution 520 TV Lines
• S/N ratio Better than 50dB (at AGC off)
• Minimum Illumination 0 lux (IR LED’s on)
• Power supply DC 9 ~ 24V
• Power Consumption DC 9V, 170mA
• DC 24V, 60mA
• Operating Temperature -30˚C to +80˚C
• Field of View angle 130˚ (Diagonal), 110˚ (Horizontal), 81˚ (Vertical)
• Dimension 72(W) x 77(H) x 50(D) mm
• Weight 205g (total weight incl. bracket & sunvisor: 312g)

Specificaties
