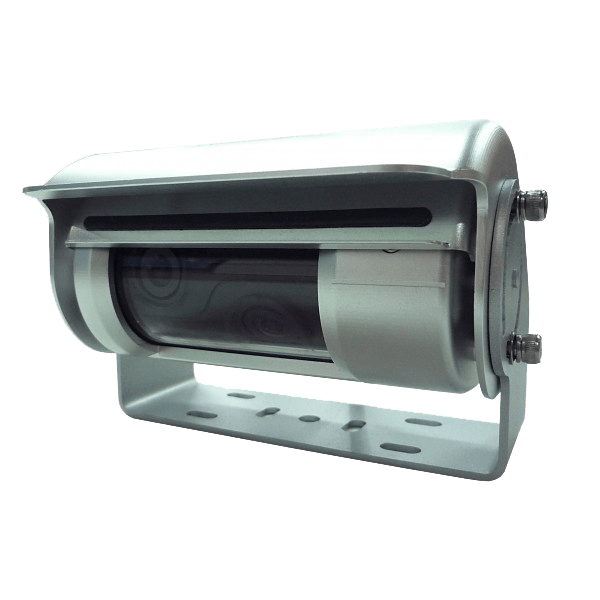

MXN 94C Duo Camera PAL normaal/mirror/shutter/verwarmd

• MXN94C
• • TWIN VIEW CAMERA
• • 1/3” SUPER HAD COLOR CCD (2 PCS)
• • MOTORIZED SHUTTER
• • IP69K WATERPROOF RATING
• • BUILT-IN IR LED’S
• • NORMAL/MIRROR IMAGE ADJUSTABLE
• • BUILT-IN MICROPHONE (ONE-WAY AUDIO)
• • VIEWING ANGLE LENS CAM1: 150˚(D) X 120˚(HD) X 90˚(V)
• • VIEWING ANGLE LENS CAM2: 53˚(D) X 43˚(HD) X 32˚(V)
• Model No.
• Image
• Picture Element
• Image Size
• Lens
• Synchronization
• Horizontal Resolution
• Min. Illumination
• Signal To Noise Ratio
• Power Supply
• Power Consumption
• Vibration
• Impact
• IP Factor
• Operation Temp.
• Case Material
• Weight
• Dimensions
• Supplied Accesories
• MXN94C / MXN95C
• Interline transfer type CCD
• NTSC: 410,000 pixels
• PAL: 470,000 pixels
• 1/3 Inch
• CAM1 Diagonal Angle : 150 degree
• Horizontal Angle : 120 degree
• Vertical Angle : 90 degree
• CAM2 Diagonal Angle : 53 degree
• Horizontal Angle : 43 degree
• Vertical Angle : 32 degree
• Internal
• NTSC: More than 480TV lines
• PAL: More than 530TV lines
• CAM1 0 Lux.(IR LED ON) W/4 IR LED
• CAM2 1 Lux.
• Better than 50dB( at AGC off)
• DC 12V
• Max. 5.0W
• 7G
• 100G
• IP 69K
• -30℃~80℃(-22℉~176℉)
• Window: Curved Glass
• Body: Aluminum
• Approx. 650g
• 114(W) X 57(H) X 59(D)mm
• Sunshield, Mounting Bracket
• Screw Kits, Split Box
• Wiper Rubber(ONLY MXN94C),
• 20M Cable (Optional), Instruction Manual

Specificaties
