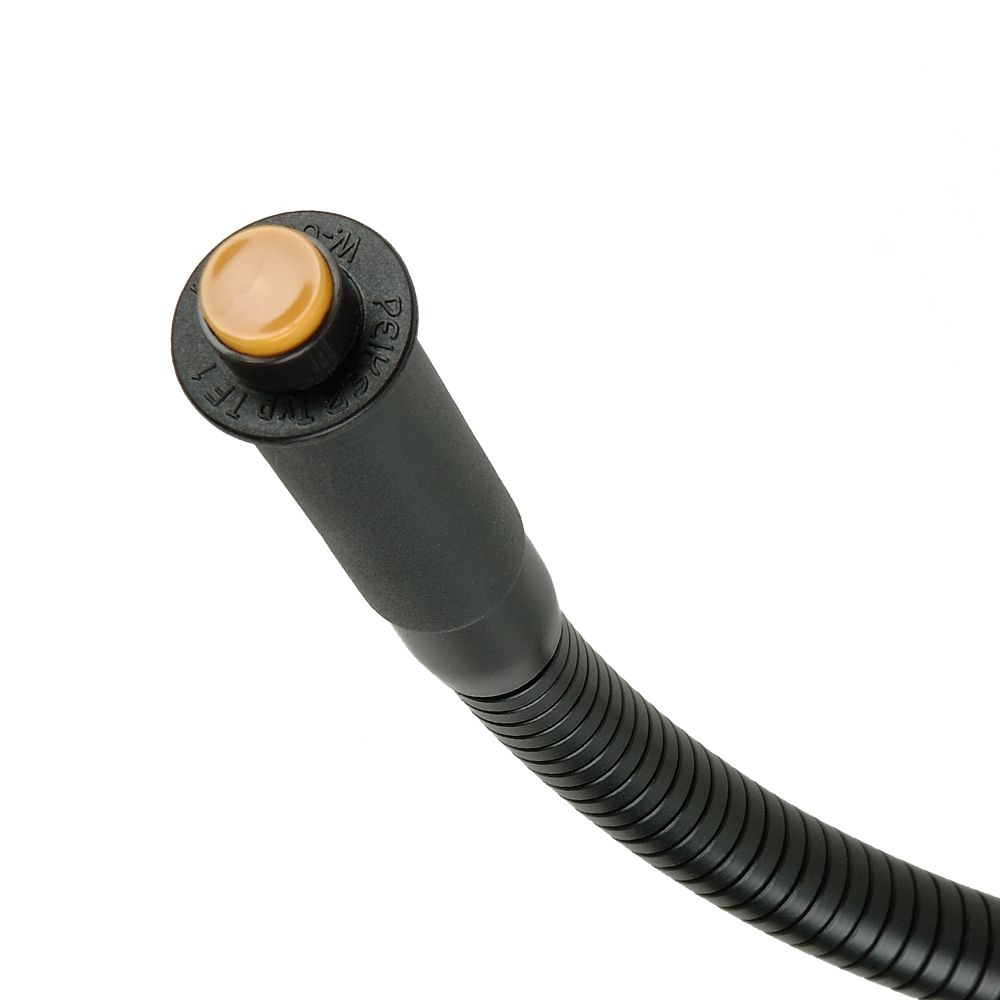

PeiTel Schakelaar PushToTalk op zwanenhals

• Overview
• Rugged housing with gooseneck
• Can be positioned for improved ergonomics
• Perfect for special vehicles
• Long life switch contact
• Mounting bracket
• Scope of delivery
• Gooseneck push-to-talk button with cable
• BW2 mounting bracket
• Options
• Customized plugs and cables
• Application range
• Radio and PA systems in mobile and fixed applications
• Accessories
• BW2 mounting bracket
• Specifications
• General
• Housing
• PA plastic, black
• Gooseneck
• Steel coil with external brass winding, black
• Dimensions
• Length 250 mm, head Ø 19 mm, body Ø 15 mm, gooseneck Ø 11 mm
• Weight
• 150 g (5.3 oz)
• Connection
• 2-wire cable, 1.5 m, without connector
• Operating elements
• 1 button, yellow
• Storage temperature
• -40 °C to +80 °C (-40 °F to +176 °F)
• Operating temperature
• -25 °C to +70 °C (-13 °F to +158 °F)
• Switch
• Switching capacity
• max. 24 VDC/500 mA
• Life cycle
• 200,000
• Protection class
• IP40
• Operating force
• 5 N max.
