Antennesplitter actief AM/FM Fakra M - DAB+ SMB F/DIN M
€38,50
Prijs met korting
€38,50
Normale prijs
Ga direct naar de productinformatie
Antennesplitter actief AM/FM Fakra M - DAB+ SMB F/DIN M
€38,50
Prijs met korting
€38,50
Normale prijs
Incl. BTW.
Excl. Verzendkosten.
SKU: 67000313
EAN: 9005796120315
- Antennesplitter actief AM/FM Fakra M - DAB+ SMB F/DIN M
- Antenna Signal Splitter - active - for passive antennas
- - plug: FAKRA / DIN
- Production information
- the incoming antenna signal will be splitted in between AM/FM & DAB+
- AM 0 dB
- FM +20 dB
- DAB+ +20 dB
- power supply: 8V - 12V,
- standby current: 20mA
- coaxial wire RG174
- wire length: 25cm
- -------------------------
- PLEASE NOTE

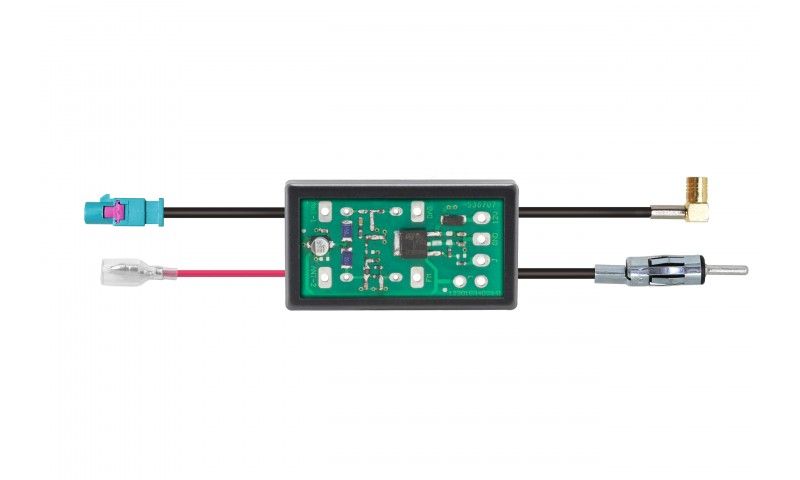

- the picture shows the electronic PCBA, the product is delivered protected in a closed housing.
- Technical data
- proper functionality only with passive (!) antennas fitted on the roof or on fender/ wing position.
Specificaties
| Accessoiremerk | RTA |
|---|---|
| Antenneproduct type | Antennesplitter FM - DAB actief |
| Connectortype A (M/F) | Fakra Male |
| Connectortype B (F/M) | DIN 41585 Male (radio) |
| Connectortype C (F/M) | SMB Female |
| Antenne / Splitter info | Werkt alleen met passieve antennes, Actief product (voeding benodigd), Split 1 AM/FM antennesignaal naar 1 x AM/FM en 1 x DAB |
