Antennesplitter passief FM 2x fakra M - DAB SMB F 1x DIN M

• Antennesplitter passief FM 2x fakra M - DAB SMB F 1x DIN M
• Let op! Werkt alleen met voertuigen met antennes met een versterkt antennesignaal.
• PRODUCT DESCRIPTION
• DAB+ signal splitter & FM "PHASE" antenna-diversity with phantom feed.
• PRODUCT INFORMATION
• FM PHASE antenna-diversity.
• 2 vehicle antennas - means signal is present on both antenna wires.
• ----------------------------
• The interface optimise the signal/noise ratio and split the frequences according to DAB+ and FM.
• ---------------------------
• Power supply phantom feed:
• GREEN wire circle closed supplies 8,5V open 12V.
• ------------------------------
• PLEASE NOTE

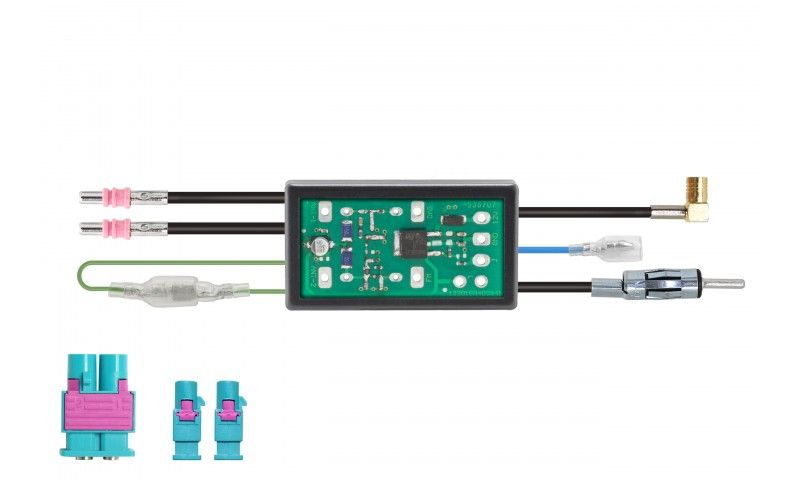

• the picture shows the electronic PCBA, the product is delivered protected in a closed housing.
• TECHNICAL DATA
• The interface works in vehicles having active (amplified) antennas & fakra connection.
• Anschluss.DAB+ Frequency 174 MHz – 240 MHz
• FM Frequency 87,5 MHz – 108MHz
