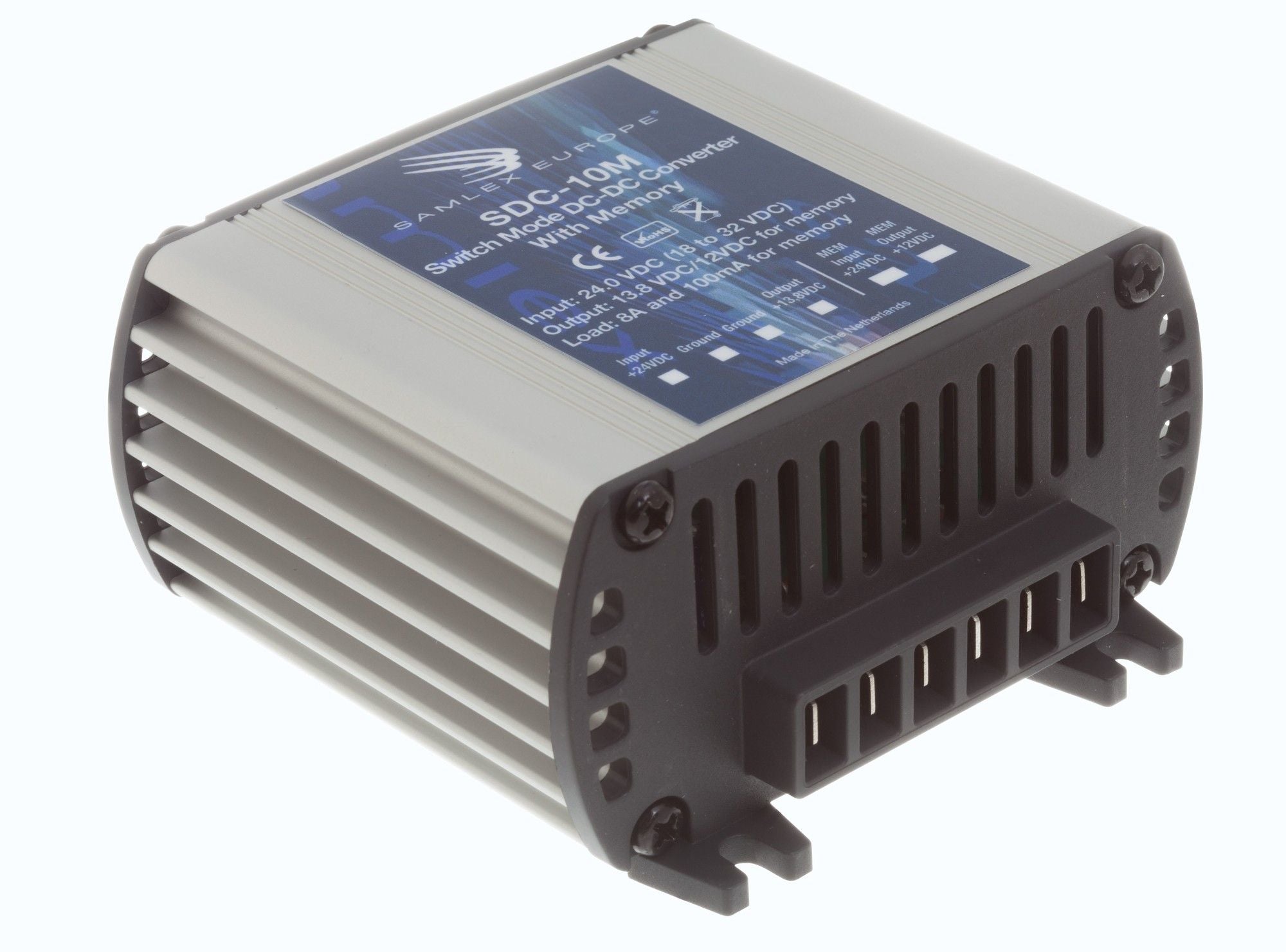

Omvormer SDC-10M 18-32V->13.8V 8 amp 100ma

• Omvormer SDC-10M 18-32V->13.8V 8 amp 100ma
• DC-DC Converters Step-Down - SDC-10M
• This highly efficient switch mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 18 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 8 Amps and is also having an extra MEMORY BACKUP output of 100mA @ 12Vdc. The SDC-10M DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include short circuit, reverse polarity and overvoltage protection.
• Input Voltage
• 18 to 32 VDC
• Output Voltage
• 13.8Vdc + 12Vdc for the memory output
• Dimensions
• 98 x 100 x 49 mm
• Weight
• 0,25 Kgs
• Output
• 8 Amps + 100mA for output
• Fuse Rating
• 10 A
• Advanced switchmode design
• Compact and light weight
• Reverse polarity protection
• Overvoltage protection
• Extra 100mA output for example MEMORY backup
