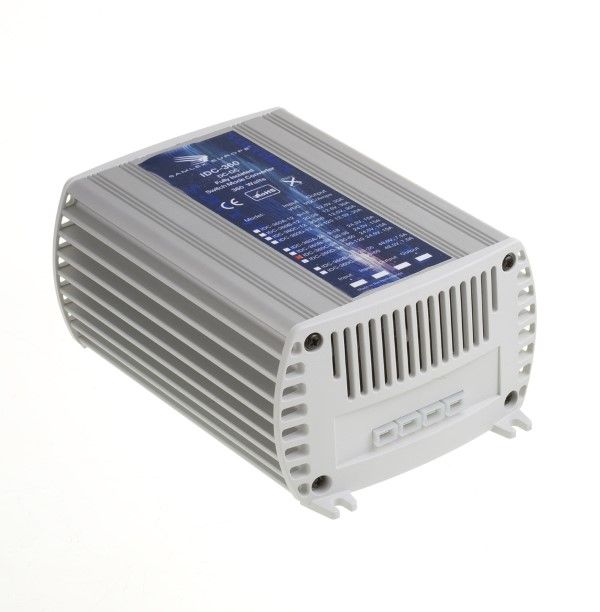

DC-DC switch omvormer 9-18V input 12.5V output 30A

• Highly efficient 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. The IDC-360A-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 30 Amps (at 18 Volts input).
• Features of this isolated DC-DC converter include compact housing, foldback current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connections.
• The unit comes with 6,3 mm push on flat blade “quick disconnect” connectors. The IDC-360A-12 isolated DC-DC converter is EMI/EMC compliant and conforms to the European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.

Specificaties
