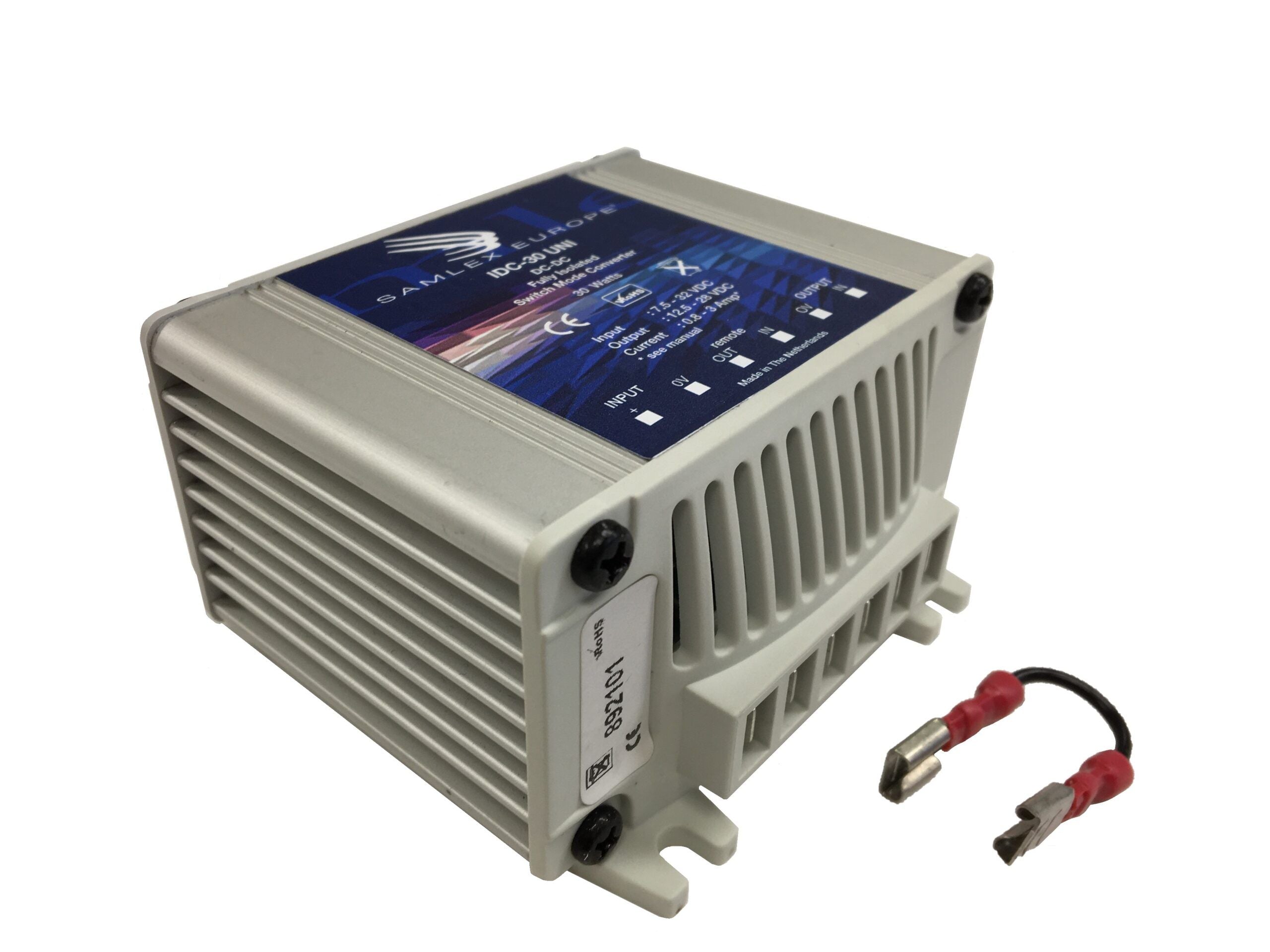

DC-DC switch omvormer 7-35v input 12.5-28v output 0.8-3A

• The IDC-30 is a multiple isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. The IDC-30 can be set in different output voltages betwen 12,5Vdc and 28,0Vdc, the maximum output will be 30Watts so between 0,8 and 3,0 Amps depending on the input and output voltage you have selected for the IDC-30. Features of this isolated DC-DC converter include compact housing, foldback current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connections. The unit comes with 6,3 mm push on flat blade “quick disconnect” connectors. The IDC-30 isolated DC-DC converter is EMI/EMC compliant and conforms to the European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
• Input Voltage
• 7.5 to 32VDC
• Output Voltage
• 12,5 – 28,0 VDC (can be set)
• Dimensions
• 50 x 87 x 83 mm
• Output0,8-3,0
• 0,8 – 3,0Amps
• Fuse Rating
• n/a
• Weight
• 0,24 Kgs
• Completely Isolated
• High efficiency
• Compact and easy to install
• Short Circuit Protected
• Adjustable output voltage
• Extra wide range input
