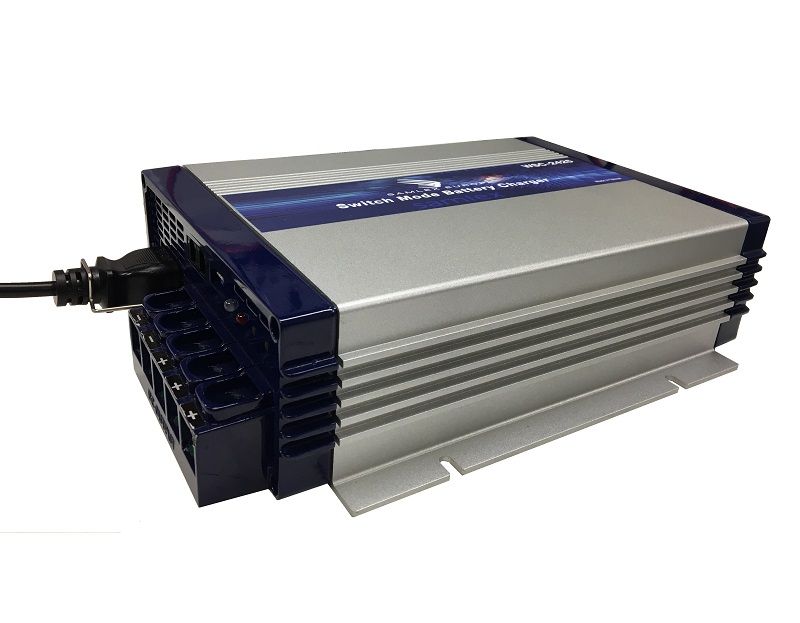

Battery Chargers 4-stage 25 Amps 27 6-29 6 VDC

• This advanced fully automatic 4-stage 25 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell), LI-Ion from a 115/230 V, 50/60 Hz AC source. A DIP switch setting can be used to convert to a two stage algorithm, in order to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short circuit protection. The unit allows charging of up to 2 separate battery banks.
• Input Voltage
• 100-240 VAC
• Output Voltage
• 29,6-27 VDC
• Dimensionx
• 292 x 210  x 75 mm
• Output
• 25 Amps
• Fuse Rating
• n/a
• Weight
• 2,5 Kgs
• Product benefits
• Wide input range 100-240Vac / 50/60Hz
• Charger/ Power supply function
• Power factor correction 0.97
• Half power mode function
• Fan speed controlled
• Slim line design
• Light Weight
• High Efficiency >90%
