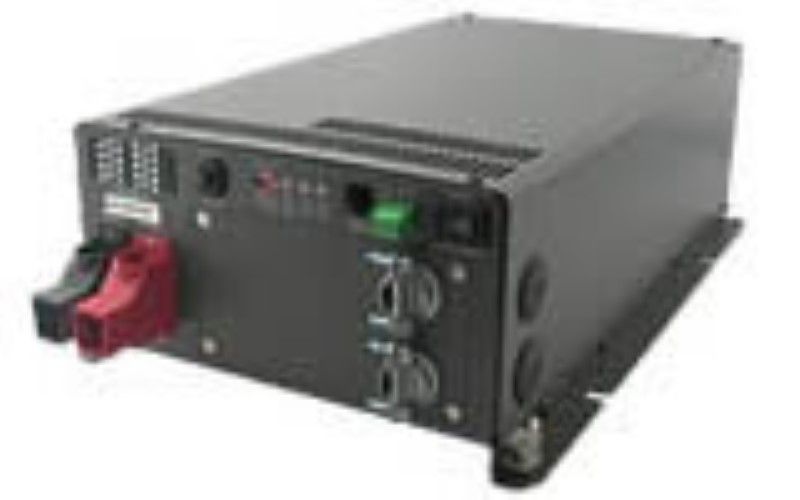

Zuivere sinus inverter C/W transfer switch 1000w 12v/230v

• This highly efficient microprocessor controlled DC-AC inverter converts 12 Volts DC (Nominal) to 1000 watts of pure sine wave AC power at 220/230/240Volts, 50 Hz. The unit comes with a built-in 16 Amp transfer switch and a 6 Amp circuit breaker. Input battery cable lugs are provided and the AC output is obtained through a hard-wired connection. Features include overload, short circuit, over temperature, under & over voltage protection, low power saving mode to conserve energy. The unit is e-13/ CE / FCC approved and the unit’s safety standards conform to UL-458 specifications.
• nput Voltage
• 10.5 to 15 VDC
• Output Voltage
• 230 VAC +/- 3%
• Dimensions
• 373 x 236 x 115 mm
• Output
• 1000 Watts
• Fuse Rating
• 40 A x 4
• Weight 6,2 Kgs
• Product benefits
• 16 Amps transfer switch
• 12-14 millisec transfer time
• 6 Amps circuit breaker
• Pure sine wave output(THD <3%)
• 50/60Hz switch selectable output AC voltage frequency
• Input and Output fully isolation design
• Power save mode to conserve energy
• Load controlled cooling fan
• Controlled by state-of-the-art microprocessor
• Short-circuit, over-temperature, over-load protection
• over-voltage and under-voltage protection
• Meets UL458 (but is not UL listed)
• Operating Temp. range 0~40C
