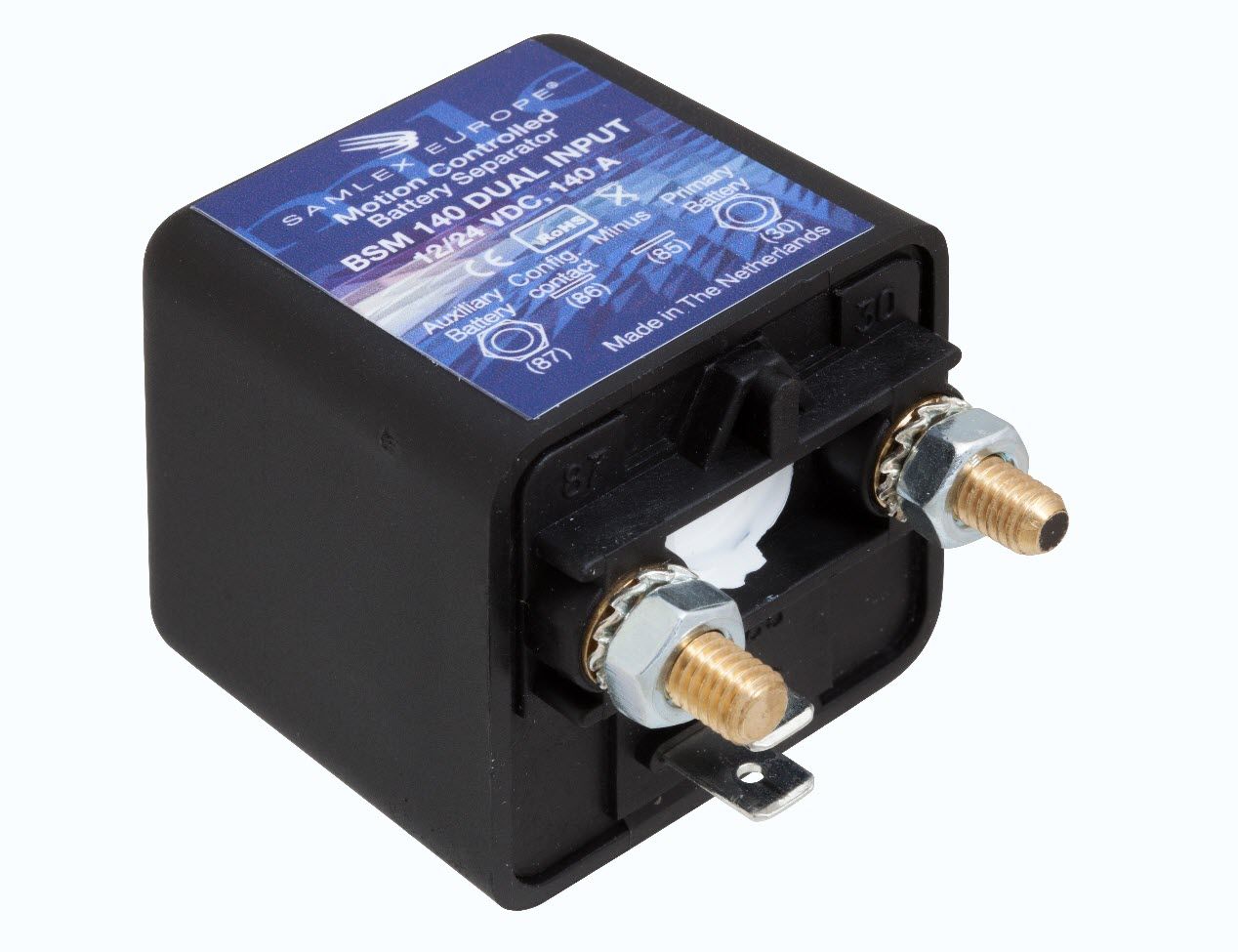

Accu Scheidingsrelais met motion detection 12V/24v 140A

• Accu Scheidingsrelais met motion detection 12V/24v 140A
• The BSM 140 DUAL is designed for use in situations where 2 batteries are used; for example in boats, campers and caravans. The Battery separator is a microprocessor controlled high capacity mechanical switch with vibration (i.e. motion) detection. Since every vehicle (EURO 5/6 engines) has its own vibration frequency and amplitude, the user can set the sensitivity of the BSM.
• Product benefits
• Microprocessor controlled
• Motor status detection through vibration
• Prevents excessive discharging of the starter battery
• Automatic detection for 12 or 24 Vdc system
• Easy to install - does not require changing the existing circuit of the alternator EURO 5/6
• Bidirectional
• No voltage drop
• Manual BSM 140 DE_EN_FR_NL.pdf
• Manual
• Product details
• Input Voltage
• Automatic detection 12/24 V
• Output Voltage
• >11.8 or >23.6 VDC
• Dimensions
• 46 x 46 x 80 mm
• Weight
• 0,15 Kgs
• Output
• 140 A
• Fuse Rating
• n/a
